Name: 45U Outdoor Telecom Cabinet with PDU HighPerformance Power Management for Telecommunications
Brand: ESTEL
Price: 1 USD

Brand Name : ESTEL

Model Number : ET8080230A-45U

Certification : ISO9001, CE, 3C, FCC, TLC

Place of Origin : Shenzhen, China (Mainland)

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20,000 sets per month

Delivery Time : 15-20 working days

Packaging Details : Wooden case

Model : ET8080230A-45U

Protection Level : IP55

External Dimension : H800mm×W800mm×D2300mm ( can be customized)

Internal Space : 19 inch, 45U

Material : Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall with PEF heat insulation

Insulation : 20mm PE

Coating : Polyester powder coating

Color : RAL7035

Contact Now

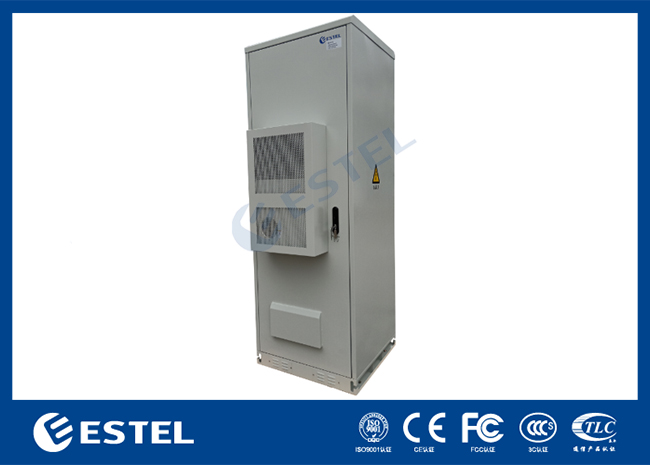

45U Outdoor Telecom Cabinet with PDU

1.Technical Parameters

Configuration	Item	Technical Parameter
Cabinet	Model	ET8080230A-45U
	Protection Level	IP55
	External Dimension	H800mm×W800mm×D2300mm ( can be customized)
	Internal Space	19 inch, 45U
	Material	Galvanized steel,inner plate:1.0mm, outer plate: 1.2mm, base thickness: 2.0mm, double wall with PEF heat insulation
	Insulation	20mm PE
	Coating	Polyester powder coating
	Color	RAL7035
	Lock	Three-point lock
	Hinge	Inner hinge
	Installation Options	Floor mounted
	Cable Routing	Cable in and out from the bottom of cabinet with gland: 8xPG21 and 8xPG29
	Maintenance	One front door, front maintenance
Air conditioner	Cooling Capacity	1500W
	Input Voltage	48VDC
	Communication	RS485
Sensor	Working voltage	DC40V-DC60V
Power Distribution Unit	125A 6 way UK plug
LED Lamp	Voltage: 48VDC LED Lamp with switch
Environment	Working Temperature	-40℃~+55℃ (+Solar Radiation)
	Storage Temperature	-40℃~+70℃
	Working Humidity	5%~95%(No condensation)
	Working Altitude	0~4000meters

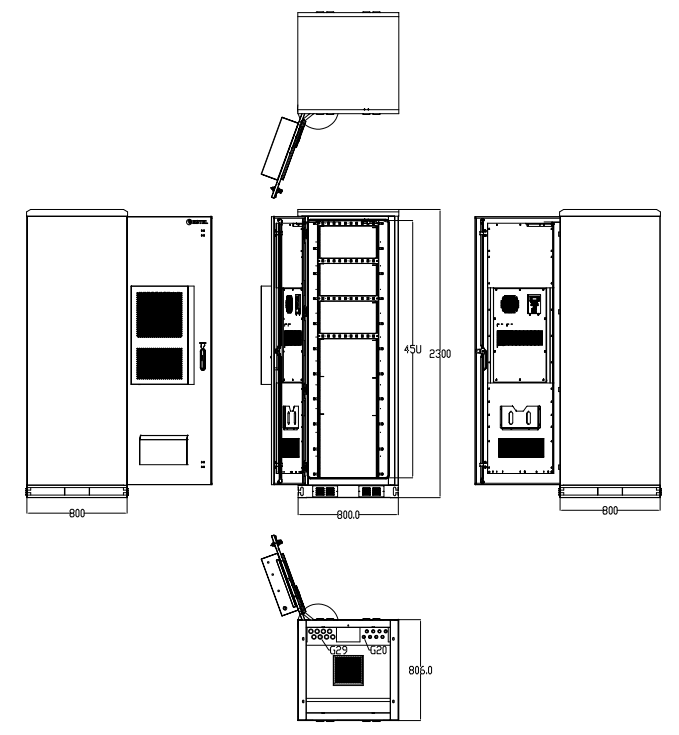

2.Cabinet Diagram

45U Outdoor Telecom Cabinet with PDU High-Performance Power Management for Telecommunications
